Product Description

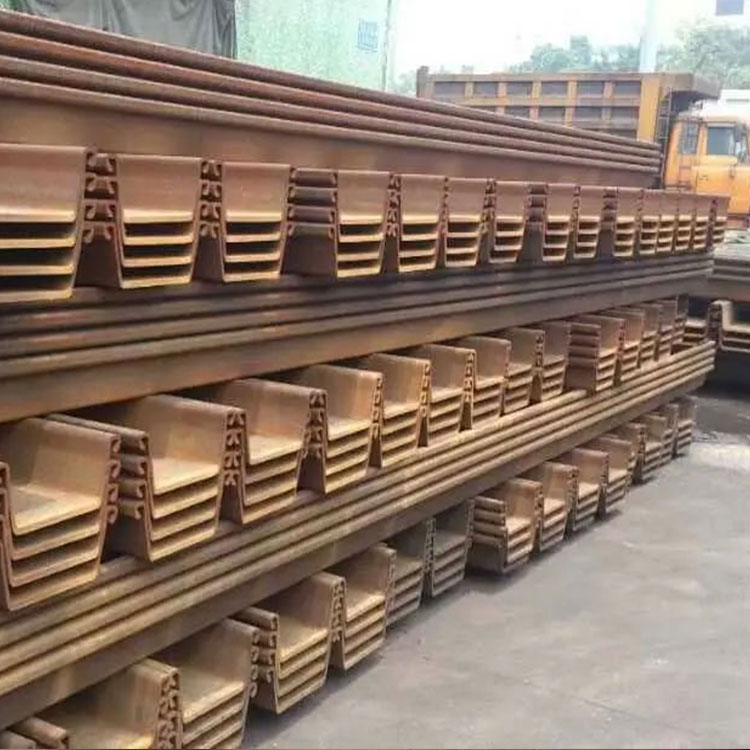

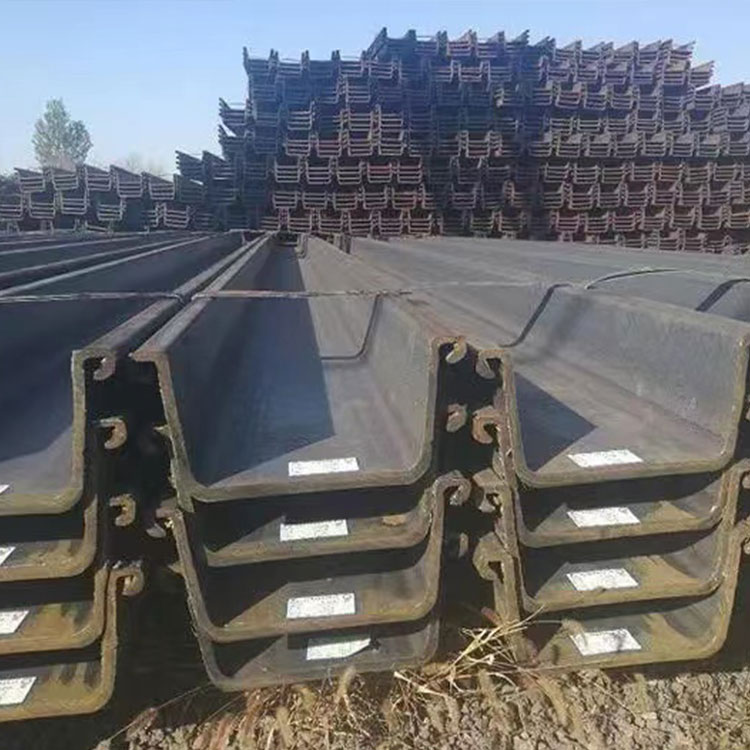

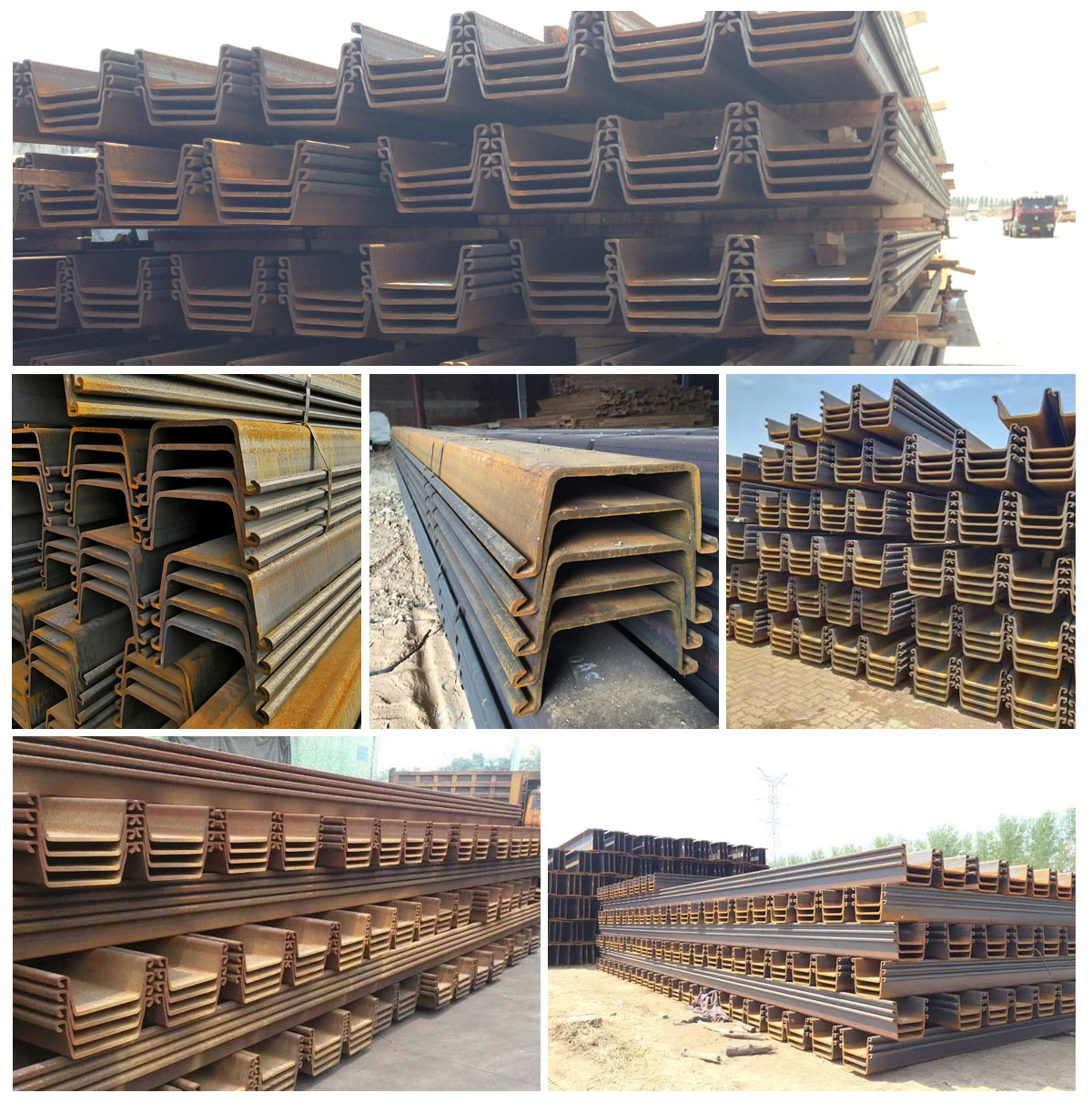

Advantages and common specifications of U-shaped steel sheet piles
1) The specifications and models of U-shaped steel sheet piles are abundant.
2) Designed and produced according to European standards, the structure is symmetrical, which is conducive to repeated use, and is equivalent to hot rolling in repeated use.
3) The length can be customized according to customer requirements, which brings convenience to the construction and reduces the cost.
4) Due to the convenience of production, it can be pre-ordered before leaving the factory when used together with the combined pile.
5) The production design and production cycle are short, and the performance of steel sheet piles can be determined according to customer requirements.

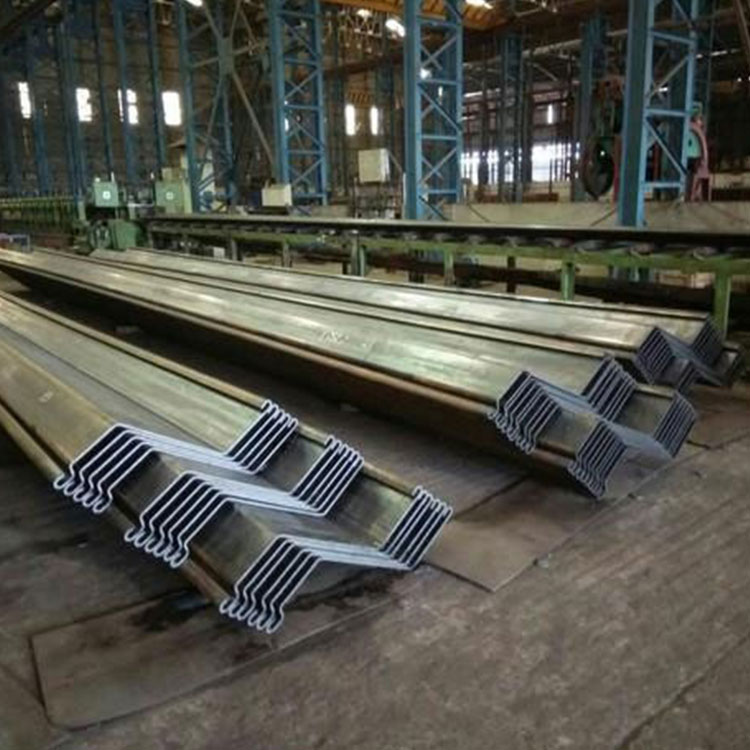

Specification sheet and advantages of Z-type steel sheet piles
The locks of the Z-shaped steel plate are symmetrically distributed on both sides of the neutral axis, and the web is continuous, which greatly improves the section modulus and bending stiffness, and ensures that the section mechanical properties can be fully utilized. Because of its unique cross-sectional shape and reliable Larssen lock.
Advantages of Z-type steel sheet piles:
1. Flexible design, with relatively high section modulus and mass ratio;
2. Higher moment of inertia, thereby increasing the stiffness of the sheet pile wall and reducing displacement deformation;
3. The width is large, which effectively saves the time of hoisting and piling;
4. The increase of the section width reduces the number of shrinkage of the sheet pile wall and directly improves its water-stopping performance;
5. Thickening treatment is carried out on the severely corroded parts, and the corrosion resistance is more excellent.
| Z-type steel sheet pile common specification table | ||||||||
| model | width | high | thickness | sectional area | Single weight per pile | wall per meter | moment of inertia | Section modulus |
| mm | mm | mm | Cm2/m | Kg/m | Kg/ m2 | Cm4/m | Cm3/m | |
| WRZ16-635 | 635 | 379 | 7 | 123.4 | 61.5 | 96.9 | 30502 | 1610 |
| WRZ18-635 | 635 | 380 | 8 | 140.6 | 70.1 | 110.3 | 34717 | 1827 |
| WRZ28-635 | 635 | 419 | 11 | 209.0 | 104.2 | 164.1 | 28785 | 2805 |
| WRZ30-635 | 635 | 420 | 12 | 227.3 | 113.3 | 178.4 | 63889 | 3042 |
| WRZ32-635 | 635 | 421 | 13 | 245.4 | 122.3 | 192.7 | 68954 | 3276 |
| WRZ12-650 | 650 | 319 | 7 | 113.2 | 57.8 | 88.9 | 19603 | 1229 |
| WRZ14-650 | 650 | 320 | 8 | 128.9 | 65.8 | 101.2 | 22312 | 1395 |
| WRZ34-675 | 675 | 490 | 12 | 224.4 | 118.9 | 176.1 | 84657 | 3455 |
| WRZ37-675 | 675 | 491 | 13 | 242.3 | 128.4 | 190.2 | 91327 | 3720 |
| WRZ38-675 | 675 | 491.5 | 13.5 | 251.3 | 133.1 | 197.2 | 94699 | 3853 |
| WRZ18-685 | 685 | 401 | 9 | 144 | 77.4 | 113 | 37335 | 1862 |
| WRZ20-685 | 685 | 402 | 10 | 159.4 | 85.7 | 125.2 | 41304 | 2055 |
Common specification sheets and advantages of L-shaped steel sheet piles

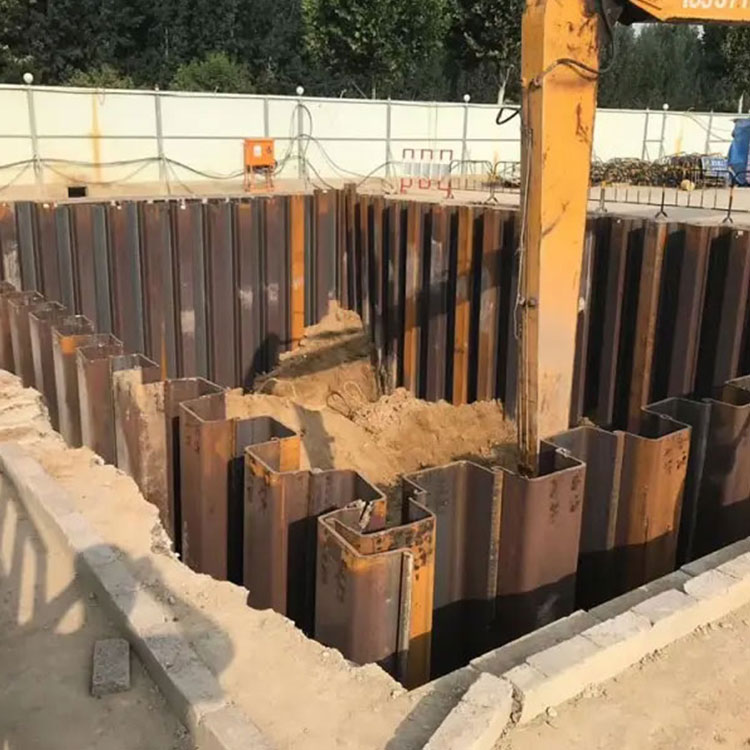

L type is mainly used for the support of embankments, embankment walls, trenches and trenches.
Advantages: The section is light, the pile wall occupies less space, the locks are in the same direction, and the construction is convenient. It is suitable for excavation and construction of municipal engineering.
| L-type steel sheet pile common specification table | |||||||
| Type | width | high | thickness | Single weight per pile | wall per meter | sectional area | Section modulus |
| mm | mm | mm | Kg/m | Kg/ m2 | Cm4/m | Cm3/m | |
| WRL1.5 | 700 | 100 | 3.0 | 21.4 | 30.6 | 724 | 145 |
| WRL2 | 700 | 150 | 3.0 | 22.9 | 32.7 | 1674 | 223 |
| WRl3 | 700 | 150 | 4.5 | 35.0 | 50.0 | 2469 | 329 |
| WRL4 | 700 | 180 | 5.0 | 40.4 | 57.7 | 3979 | 442 |
| WRL5 | 700 | 180 | 6.5 | 52.7 | 75.3 | 5094 | 566 |
| WRL6 | 700 | 180 | 7.0 | 57.1 | 81.6 | 5458 | 606 |
