Product Description

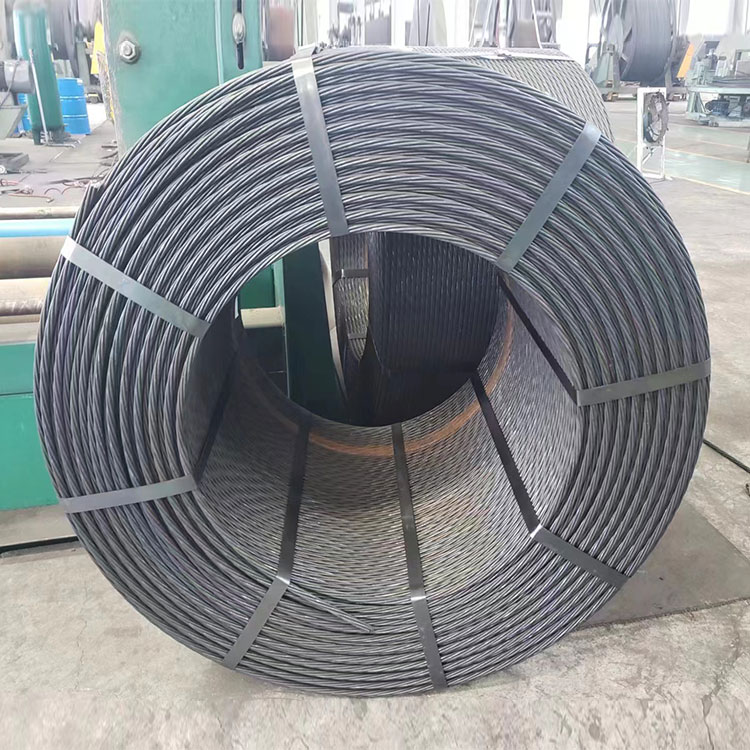

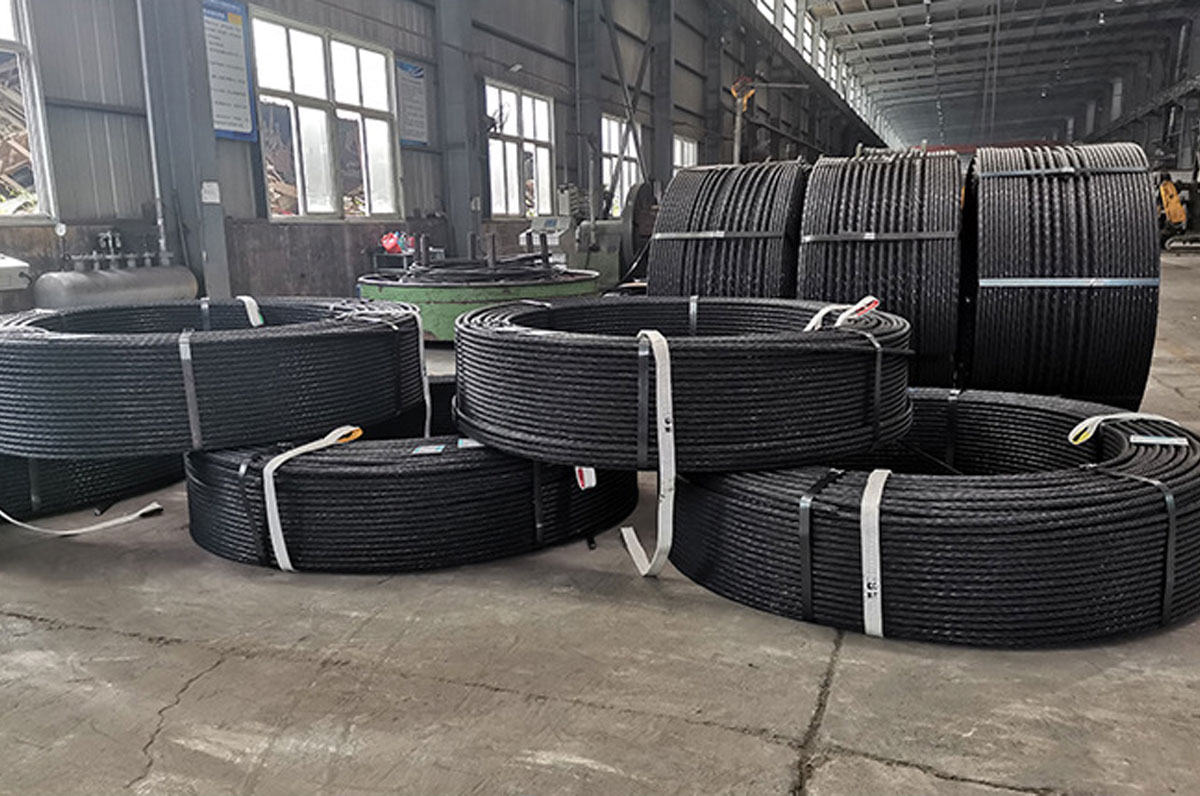

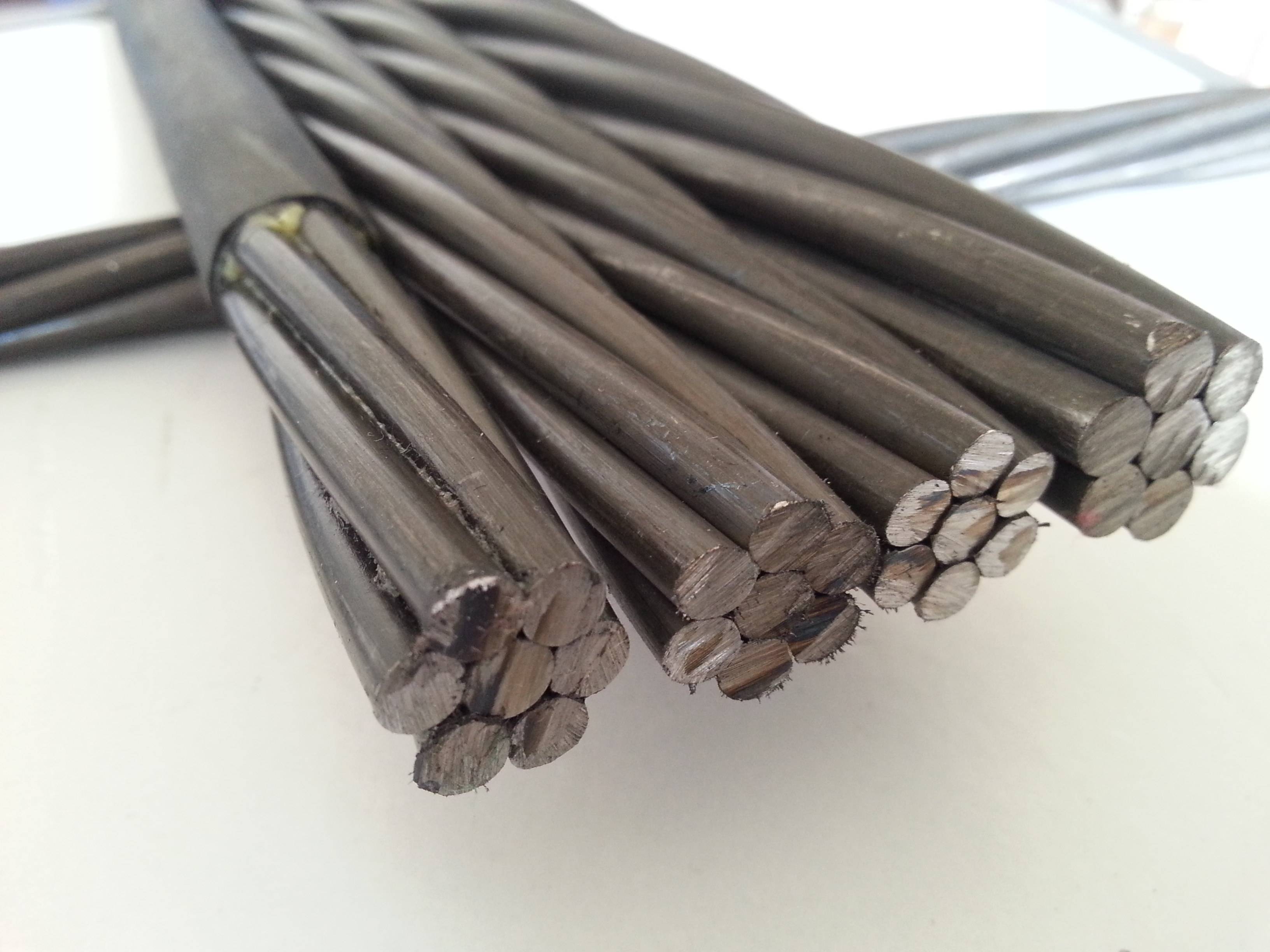

Steel strands for prestressed concrete are made of the high carbon steel wire rods SWRH82B and have the characteristics of high tensile strength, low relaxation, steady modulus of elasticity, relieved stress, and high adhesion with concrete through continuous drawing with large deduction stranding and stabilization treatment to meet the ASTM A416, BS 5896, and GB/T5224 standards. Such steel strands are primarily used in highways, bridges, key water control projects, anchoring tension members, and lift tension members.
Brazil Standard: NBR 7483
| Category | Model | Nominal Dia(mm) | Tolerance(mm) | Area of Section (mm2) | Weight (kg/1000m) | Min. Breaking Strength (kN) | Min. Load at 1% elongation (kN) | Elongation (%) | The relaxation at 1000h (%) | ||
| Min | Reference Value | Max | |||||||||
| RB190 | CP 190RB 9.5 | 9.5 | +0.4 | 54.9 | 56.2 | 57.3 | 441 | 104.3 | 93.9 | 3.5 | 3.5 |
| CP 190RB 12.7 | 12.7 | 98.6 | 100.9 | 102.9 | 792 | 187.3 | 168.6 | ||||
| CP 190RB 15.2 | 15.2 | 139.9 | 143.4 | 146.3 | 1126 | 256.8 | 239.2 | ||||
| RB210 | CP 210RB 9.5 | 9.5 | -0.2 | 54.9 | 56.2 | 57.3 | 441 | 115.3 | 103.8 | ||
| CP210RB 12.7 | 12.7 | 98.6 | 100.9 | 102.9 | 792 | 207.0 | 186.3 | ||||
| CP210RB 15.2 | 15.2 | 139.9 | 143.4 | 146.3 | 1126 | 293.8 | 264.4 | ||||
USA Standard: ASTM A416
| Grade | Nominal Dia (mm) | Tolerance (mm) | Area of Section (mm2) | Weight (kg/1000m) | Break Load (kN) | Min. load at 1% elongation (kN) | Elongation (%) | The relaxation at 1000h | |
| Initial load 70% | Initial load 80% | ||||||||
| 250 | 9.53 | ±0.40 | 51.61 | 405 | 89.0 | 80.1 | 3.5 | 2.5 | 3.5 |
| 11.11 | 69.68 | 548 | 120.1 | 108.1 | |||||
| 12.7 | 92.9 | 730 | 160.1 | 144.1 | |||||
| 15.24 | 139.35 | 1094 | 240.2 | 216.2 | |||||
| 270 | 9.53 | +0.65 -0.15 | 54.84 | 432 | 102.3 | 92.1 | 3.5 | 2.5 | 3.5 |
| 11.11 | 74.19 | 582 | 137.9 | 216.1 | |||||
| 12.7 | 98.71 | 775 | 183.7 | 165.3 | |||||
| 15.24 | 140.00 | 1102 | 260.7 | 234.6 | |||||
| 17.78 | 189.70 | 1487 | 353.2 | 318.0 | |||||
British Standard: BS5896
| Strand Type | Nominal Dia.(mm) | Tolerance (mm) | Area of Section(mm2) | Weight (kg/1000m) | Tensile Strength (Mpa) | Specified characteristic breaking load(kN) | Specified characteristic 0.1% Yield Load (kN) | Min. Load at 1% elongation (kN) | Min. clongation at max. load (%) | The relaxation at 1000h | ||
| Initial load 60% | Initial load 70% | Initial load 80% | ||||||||||
| 7-wire super | 9.60 | +0.30 -0.15 | 55 | 432 | 1860 | 102 | 87 | 90 | 3.5 | 1 | 2.5 | 4.5 |
| 11.30 | 75 | 590 | 1860 | 139 | 118 | 122 | ||||||
| 12.90 | +0.40 -0.20 | 100 | 785 | 1860 | 186 | 158 | 163 | |||||
| 15.70 | 150 | 1180 | 1770 | 265 | 225 | 233 | ||||||
Standard: GB/T5224-2014
For Min
| Structure | Nominal Dia.(mm) | Tolerance(mm) | Tensile Strength (Mpa) | Test Load (kN) | Break Load (kN) | Fp0.2 Yield Load (kN) | Agt % Elongation L0≥500mm | Relaxation | |
| Initial load to % of nominal max load (%) | The relaxation at 1000h (%)≤ | ||||||||
| 1*19 | 28.60 | +0.40 -0.15 | 1720 | 915 | 1021 | 805 | 3.5 | 70 80 | 2.5 4.5 |
| 17.80 | 1770 | 368 | 410 | 334 | |||||
| 19.30 | 431 | 481 | 379 | ||||||
| 20.30 | 480 | 534 | 422 | ||||||
| 21.80 | 554 | 617 | 488 | ||||||
| 28.60 | 942 | 1048 | 829 | ||||||
| 20.30 | 1810 | 491 | 545 | 432 | |||||
| 21.80 | 567 | 629 | 499 | ||||||
| 17.80 | 1860 | 387 | 428 | 341 | |||||
| 19.30 | 454 | 503 | 400 | ||||||
| 20.30 | 504 | 558 | 444 | ||||||
| 21.80 | 583 | 645 | 513 | ||||||
| 28.60 | 990 | 1096 | 854 | ||||||
