Hardoxs 450 550 500 600
SHANQI
Product Description
Hardox steels can be defined as a type of steel with high durability. Hardox steels are also resistant to wear and it is first developed by SSAB, a Swedish steel producer. Due to the fact that steels wear slowly under a high amount of mechanical stress, Hardox steel is commonly known as a wearing plate. Therefore, Hardox steels are especially appropriate for organizations performing gravel and sand handling operations, for instance, tippers and buckets of excavators in which Hardox steel is used to increase the lifetime.
Characteristics of hardox steels consist of high hardness, uniform flatness, and very high strength. Since much thinner sections can be produced without compromising the strength of the part, the overall weight of a plate is significantly reduced. Moreover, Hardox is a type of steel that manages to preserve its resistance against sudden impact even at very low-temperature values. This wear-resistant material is also very suitable for welding and machining, so, repairing with great convenience is possible when it is damaged.
The combination of high hardness, strength, and wear resistance enables the total weight of construction to be reduced by around 15%. By improving Brinell hardness value 50 points, the life cycle of the produced part is extended by around 50-80%.
Product Name | Hardoxs Steel Plate & Wear resistant steel plate |
Grade | NM360, NM400, NM450, NM500, NM550, NM600,NM700 Hardox 400, Hardox 450, Hardox 500, Hardox 550, Hardox 600 |
Hardfacing layer | High chromium high carbide overlay |
Microstructure | The carbide (Cr7C3) volume fraction on the microstructure is above 50% |
Hardness | HRC |
Surface Treatment | Hardfacing,clading,coated |
Technique | Hardfacing,open arc welding,submerged arc welding |
Wear Resistance | High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel |
Impact Resistance | Medium |
Thickness tolerance | Uniform overlay thickness, with tolerance within 0-0.5mm. |
Main Thicknesses | 3+3,4+4, 5+5 |
Plate Size | Open arc welding wear plate:1400*3400mm Submerged arc welding wear plate:1400*3000mm, 1400*3500mm, 2100*3500mm. |
Product Pictures
Hardox 400
Thickness of plate 3-130 millimeters
Brinell Hardness: 370-430
Hardox 450
Thickness of plate 3-80 mm
Brinell Hardness: 425-475
When cold formed highly wear-resistant steels are needed, these types of Hardox steels are used.
Conveyor and dredging belts, recycling installations, chutes, and dump trucks are some of the usage areas of these high wear-resistant plate steels. These are characterized by excellent weldability.
Hardox 500
Thickness of plate 4-32 millimeters
Brinell Hardness: 470-530
Thickness of plate 32-80 millimeters
Brinell Hardness: 370-430
Hardox 550
Thickness of plate 10-50 millimeters
Brinell Hardness: 525-575
These types of Hardox steels are utilized in the fabrication of parts where high resistance to wear is required.
These types are intensively used in gears of grinding equipment, breaker and knife teeth, and conveyor belts. If the temperature of these materials exceeds 250 °C, they will begin to lose their mechanical properties.
Hardox 600
Thickness of plate 8-50 millimeters
Brinell Hardness: 560-640
This type of Hardox steel is mainly used in construction projects where high wear resistance is needed. For example, chutes, shredders, and demolition hammers are products in which Hardox 600 is used.
Application

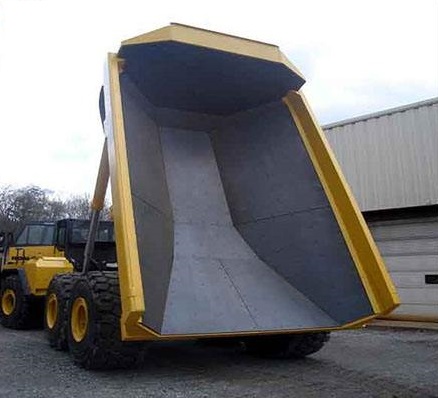

Hardox 450 Wear Plate for Dump Truck Liners
Cutting Edges
Hardox 450 Plate for Ripper Tyne
Crusher Liner Plates
Conveyor Buckets
Welding Hardox 450 Plate used in Hoppers
Ore Scrapers
Drag line Bucket Wear Liners
Screen Plates - Chute Liners
Mining
Material Handling
Aggregate
Dump Trucks
Material Transfer Chutes
Storage Bins
Buckets
