Steel sheet pile Is a kind of section steel with locking port, And its section has straight plate shape, groove shape and Z shape. The common ones are Larsen style, lacvanna style etc.
$380-$600 / Ton
1.The most competitive price
2. ISO certified excellent manufacturer
3. Third party inspection: SGS, CE, etc.
4. Sufficient inventory, Fast delivery
5. Professional after-sales support team
Contract US
Email: sales@shanqisteel.com
Custormized Size and Type
SHANQI
Product Description
Steel sheet pile is a steel structure with linkages on the edges, and the linkages can be freely combined to form a continuous and tight retaining wall or a steel structure.
Steel sheet pile is a type of steel with a lock, and its cross-section is straight, U-shaped and Z-shaped, and has various sizes and interlocking forms. The common ones are Larson, Lackawanna and so on. Its advantages are: high strength, easy to drive into the hard soil layer; can be constructed in deep water, if necessary, add inclined support to become a cage. Good waterproof performance; can form cofferdams of various shapes as required, and can be reused many times, so it is widely used.
| Type | Width | Height | Thickness | Sectional area | Weight per pile | Weight per wall | Moment of Inertia | Modulus of section |
| mm | mm | mm | Cm2/m | Kg/m | Kg/ m2 | Cm4/m | Cm3/m | |
| WRU7 | 750 | 320 | 5 | 71.3 | 42.0 | 56.0 | 10725 | 670 |
| WRU8 | 750 | 320 | 6 | 86.7 | 51.0 | 68.1 | 13169 | 823 |
| WRU9 | 750 | 320 | 7 | 101.4 | 59.7 | 79.6 | 15251 | 953 |
| WRU10-450 | 450 | 360 | 8 | 148.6 | 52.5 | 116.7 | 18268 | 1015 |
| WRU11-450 | 450 | 360 | 9 | 165.9 | 58.6 | 130.2 | 20375 | 1132 |
| WRU12-450 | 450 | 360 | 10 | 182.9 | 64.7 | 143.8 | 22444 | 1247 |
| WRU11-575 | 575 | 360 | 8 | 133.8 | 60.4 | 105.1 | 19685 | 1094 |
| WRU12-575 | 575 | 360 | 9 | 149.5 | 67.5 | 117.4 | 21973 | 1221 |
| WRU13-575 | 575 | 360 | 10 | 165.0 | 74.5 | 129.5 | 24224 | 1346 |
| WRU11-600 | 600 | 360 | 8 | 131.4 | 61.9 | 103.2 | 19897 | 1105 |
| WRU12-600 | 600 | 360 | 9 | 147.3 | 69.5 | 115.8 | 22213 | 1234 |
| WRU13-600 | 600 | 360 | 10 | 162.4 | 76.5 | 127.5 | 24491 | 1361 |
| WRU18- 600 | 600 | 350 | 12 | 220.3 | 103.8 | 172.9 | 32797 | 1874 |
| WRU20- 600 | 600 | 350 | 13 | 238.5 | 112.3 | 187.2 | 35224 | 2013 |
| WRU16 | 650 | 480 | 8. | 138.5 | 71.3 | 109.6 | 39864 | 1661 |
| WRU 18 | 650 | 480 | 9 | 156.1 | 79.5 | 122.3 | 44521 | 1855 |
| WRU20 | 650 | 540 | 8 | 153.7 | 78.1 | 120.2 | 56002 | 2074 |
| WRU23 | 650 | 540 | 9 | 169.4 | 87.3 | 133.0 | 61084 | 2318 |
| WRU26 | 650 | 540 | 10 | 187.4 | 96.2 | 146.9 | 69093 | 2559 |
| WRU30-700 | 700 | 558 | 11 | 217.1 | 119.3 | 170.5 | 83139 | 2980 |
| WRU32-700 | 700 | 560 | 12 | 236.2 | 129.8 | 185.4 | 90880 | 3246 |
| WRU35-700 | 700 | 562 | 13 | 255.1 | 140.2 | 200.3 | 98652 | 3511 |
| WRU36-700 | 700 | 558 | 14 | 284.3 | 156.2 | 223.2 | 102145 | 3661 |
| WRU39-700 | 700 | 560 | 15 | 303.8 | 166.9 | 238.5 | 109655 | 3916 |
| WRU41-700 | 700 | 562 | 16 | 323.1 | 177.6 | 253.7 | 117194 | 4170 |
| WRU 32 | 750 | 598 | 11 | 215.9 | 127.1 | 169.5 | 97362 | 3265 |
| WRU 35 | 750 | 600 | 12 | 234.9 | 138.3 | 184.4 | 106416 | 3547 |
| WRU 38 | 750 | 602 | 13 | 253.7 | 149.4 | 199.2 | 115505 | 3837 |
| WRU 40 | 750 | 598 | 14 | 282.2 | 166.1 | 221.5 | 119918 | 4011 |
| WRU 43 | 750 | 600 | 15 | 301.5 | 177.5 | 236.7 | 128724 | 4291 |
| WRU 45 | 750 | 602 | 16 | 320.8 | 188.9 | 251.8 | 137561 | 4570 |
| mm | mm | mm | Cm2/m | Kg/m | Kg/ m2 | Cm4/m | Cm3/m | |
| WRZ16-635 | 635 | 379 | 7 | 123.4 | 61.5 | 96.9 | 30502 | 1610 |
| WRZ18-635 | 635 | 380 | 8 | 140.6 | 70.1 | 110.3 | 34717 | 1827 |
| WRZ28-635 | 635 | 419 | 11 | 209.0 | 104.2 | 164.1 | 28785 | 2805 |
| WRZ30-635 | 635 | 420 | 12 | 227.3 | 113.3 | 178.4 | 63889 | 3042 |
| WRZ32-635 | 635 | 421 | 13 | 245.4 | 122.3 | 192.7 | 68954 | 3276 |
| WRZ12-650 | 650 | 319 | 7 | 113.2 | 57.8 | 88.9 | 19603 | 1229 |
| WRZ14-650 | 650 | 320 | 8 | 128.9 | 65.8 | 101.2 | 22312 | 1395 |
| WRZ34-675 | 675 | 490 | 12 | 224.4 | 118.9 | 176.1 | 84657 | 3455 |
| WRZ37-675 | 675 | 491 | 13 | 242.3 | 128.4 | 190.2 | 91327 | 3720 |
| WRZ38-675 | 675 | 491.5 | 13.5 | 251.3 | 133.1 | 197.2 | 94699 | 3853 |
| WRZ18-685 | 685 | 401 | 9 | 144 | 77.4 | 113 | 37335 | 1862 |
| WRZ20-685 | 685 | 402 | 10 | 159.4 | 85.7 | 125.2 | 41304 | 2055 |
| mm | mm | mm | Kg/m | Kg/ m2 | Cm4/m | Cm3/m | |
| WRL1.5 | 700 | 100 | 3.0 | 21.4 | 30.6 | 724 | 145 |
| WRL2 | 700 | 150 | 3.0 | 22.9 | 32.7 | 1674 | 223 |
| WRl3 | 700 | 150 | 4.5 | 35.0 | 50.0 | 2469 | 329 |
| WRL4 | 700 | 180 | 5.0 | 40.4 | 57.7 | 3979 | 442 |
| WRL5 | 700 | 180 | 6.5 | 52.7 | 75.3 | 5094 | 566 |
| WRL6 | 700 | 180 | 7.0 | 57.1 | 81.6 | 5458 | 606 |
| mm | mm | mm | Kg/m | Kg/ m2 | Cm4/m | Cm3/m | |
| WRS4 | 600 | 260 | 3.5 | 31.2 | 41.7 | 5528 | 425 |
| WRS5 | 600 | 260 | 4.0 | 36.6 | 48.8 | 6703 | 516 |
| WRS6 | 700 | 260 | 5.0 | 45.3 | 57.7 | 7899 | 608 |
| WRS8 | 700 | 320 | 5.5 | 53.0 | 70.7 | 12987 | 812 |
| WRS9 | 700 | 320 | 6.5 | 62.6 | 83.4 | 15225 | 952 |

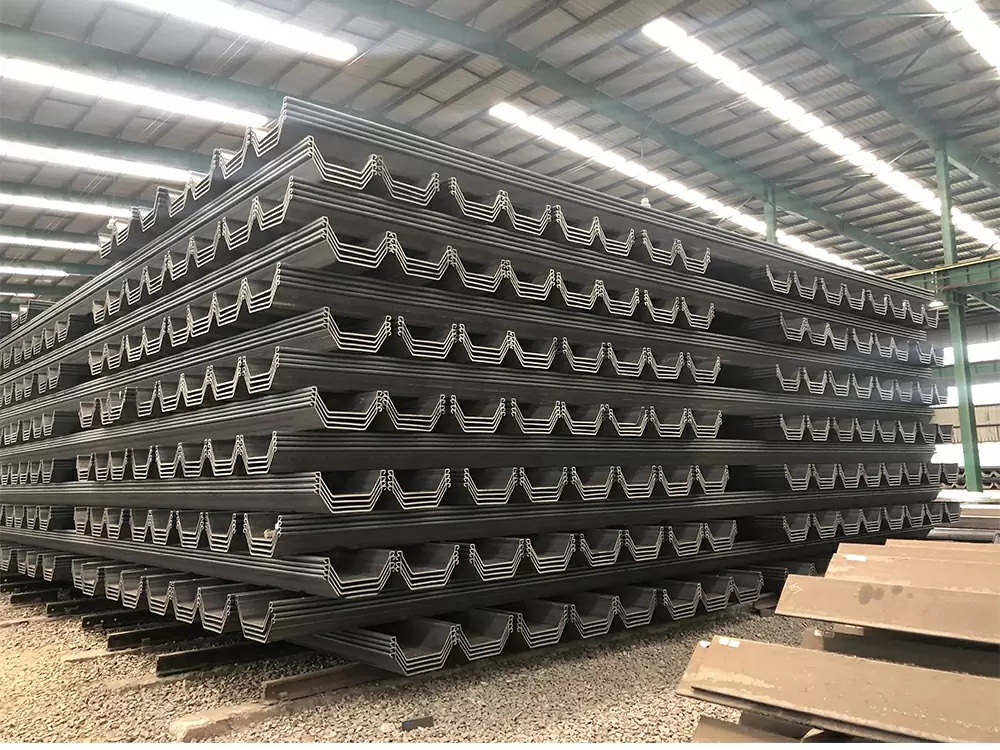

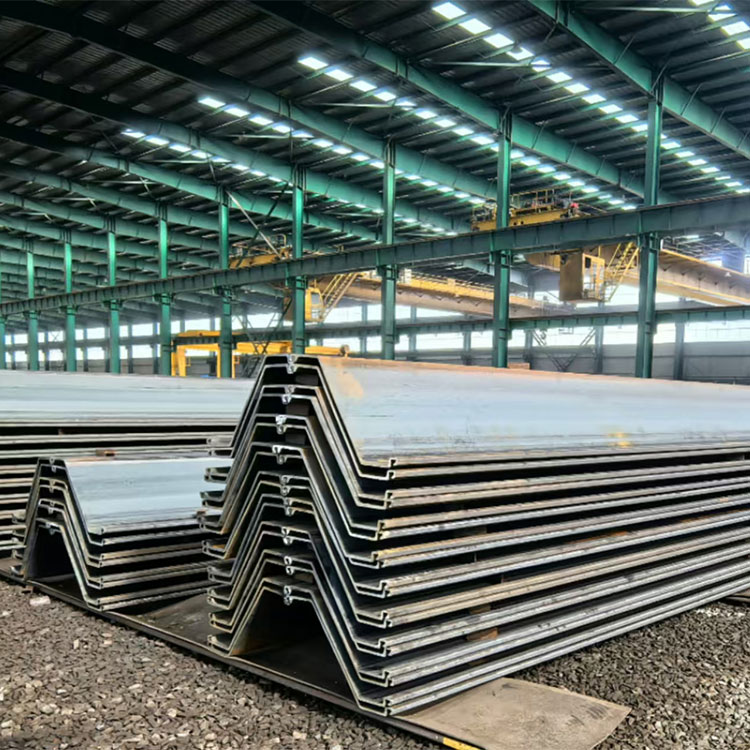

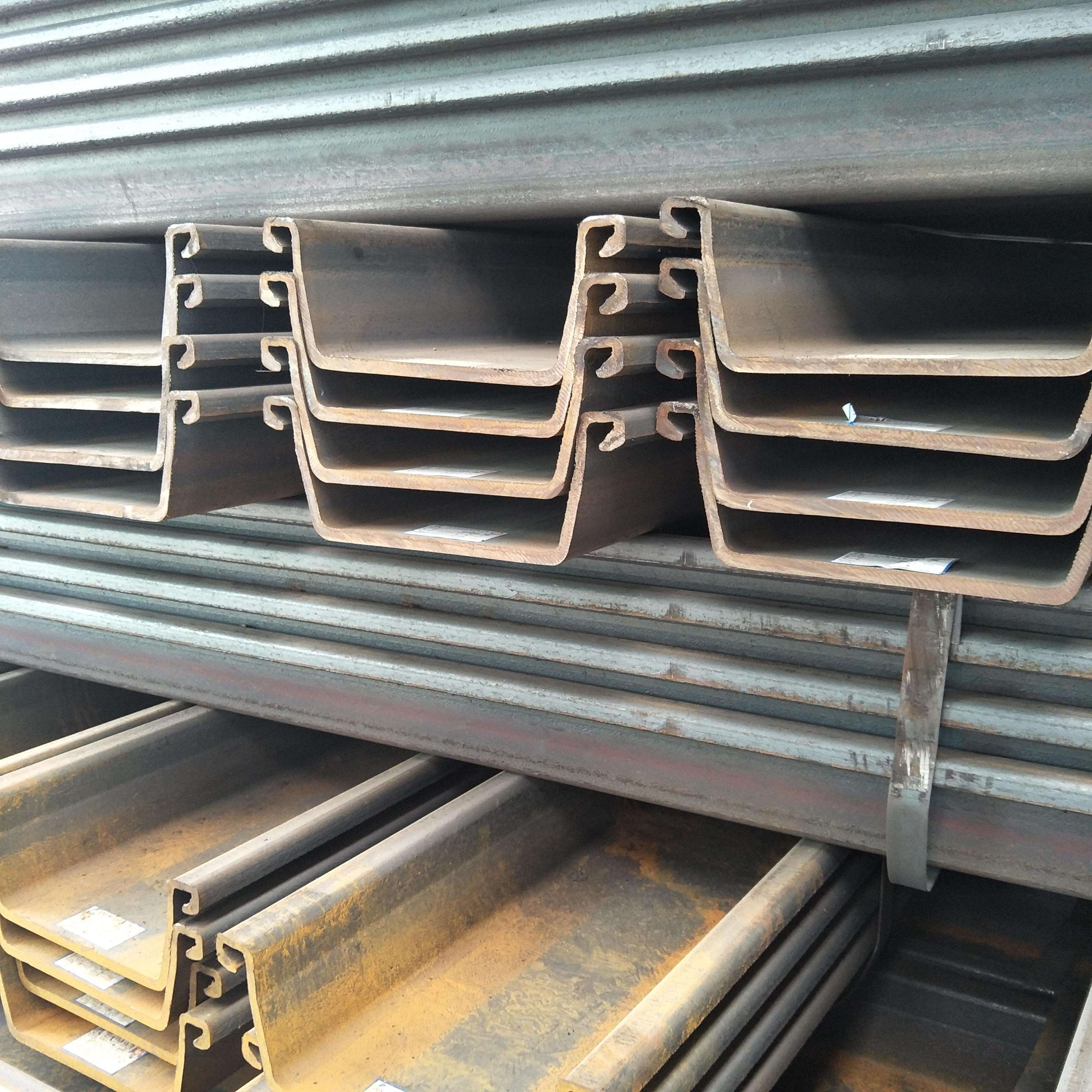

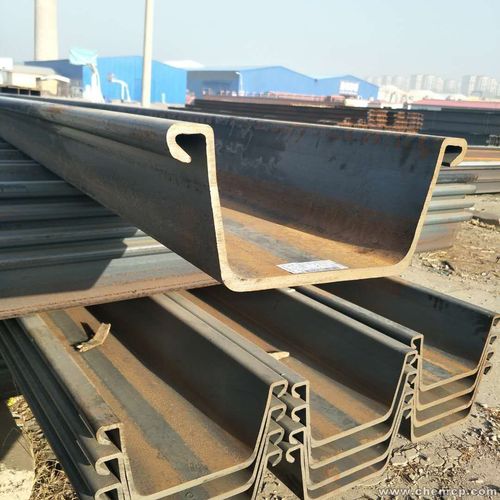

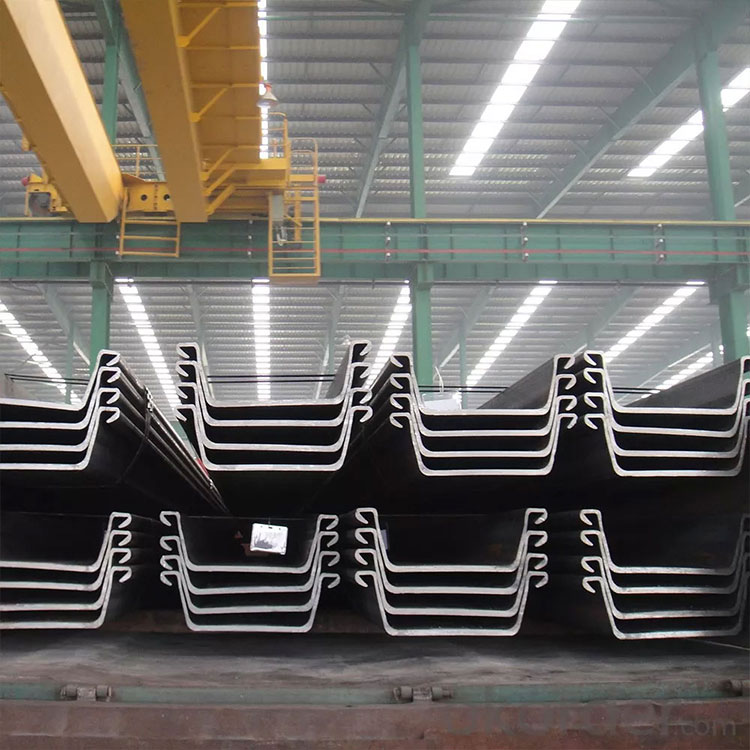

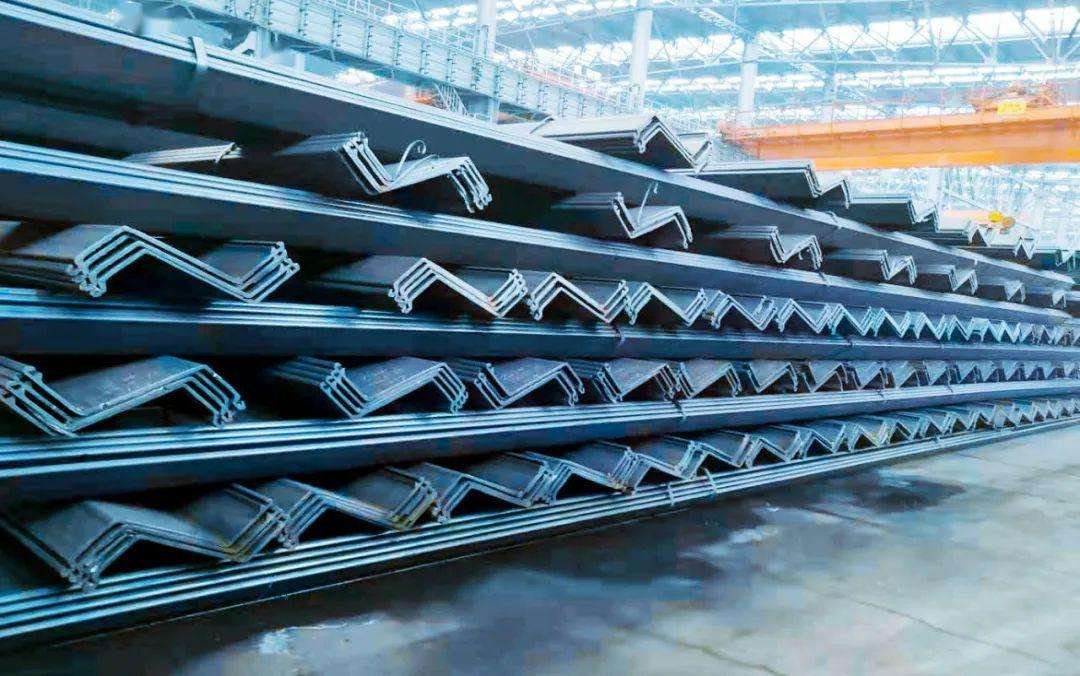

Product Pictures
About US
FAQ：
Q: What kind of work does your company do?
A: We are a business steel industry and trade.
We mainly produces carbon steel plate/pipe/coil/round bars, etc.
Q: What are the advantages of your company?
A: (1): Prime quality and Competitive price.
(2): Excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Samples can be provided as your requirements.
Q: What is your terms of payment ?
A: Can be negotiated by both parties. If you have another question, pls feel free to contact us as below.
Q: What about your price?
A: Our price is very competitive.
Pls feel free to contact us if you are interested in our products.
Q: How long is your delivery time?
A: Different products have different delivery time. The products will be delivered as soon as possible on the basis of the quality assurance. Usually the delivery time is within5-15 days after we received your balance.
