Product Description

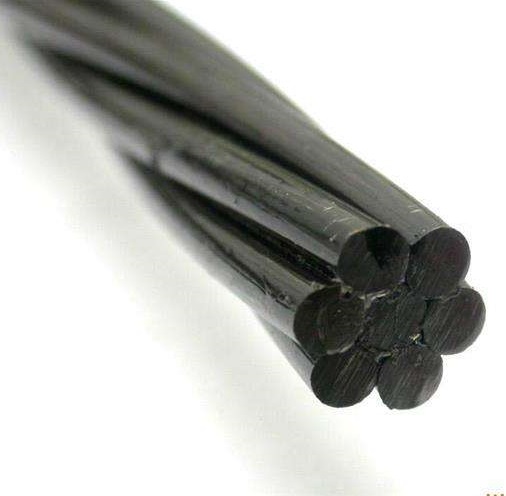

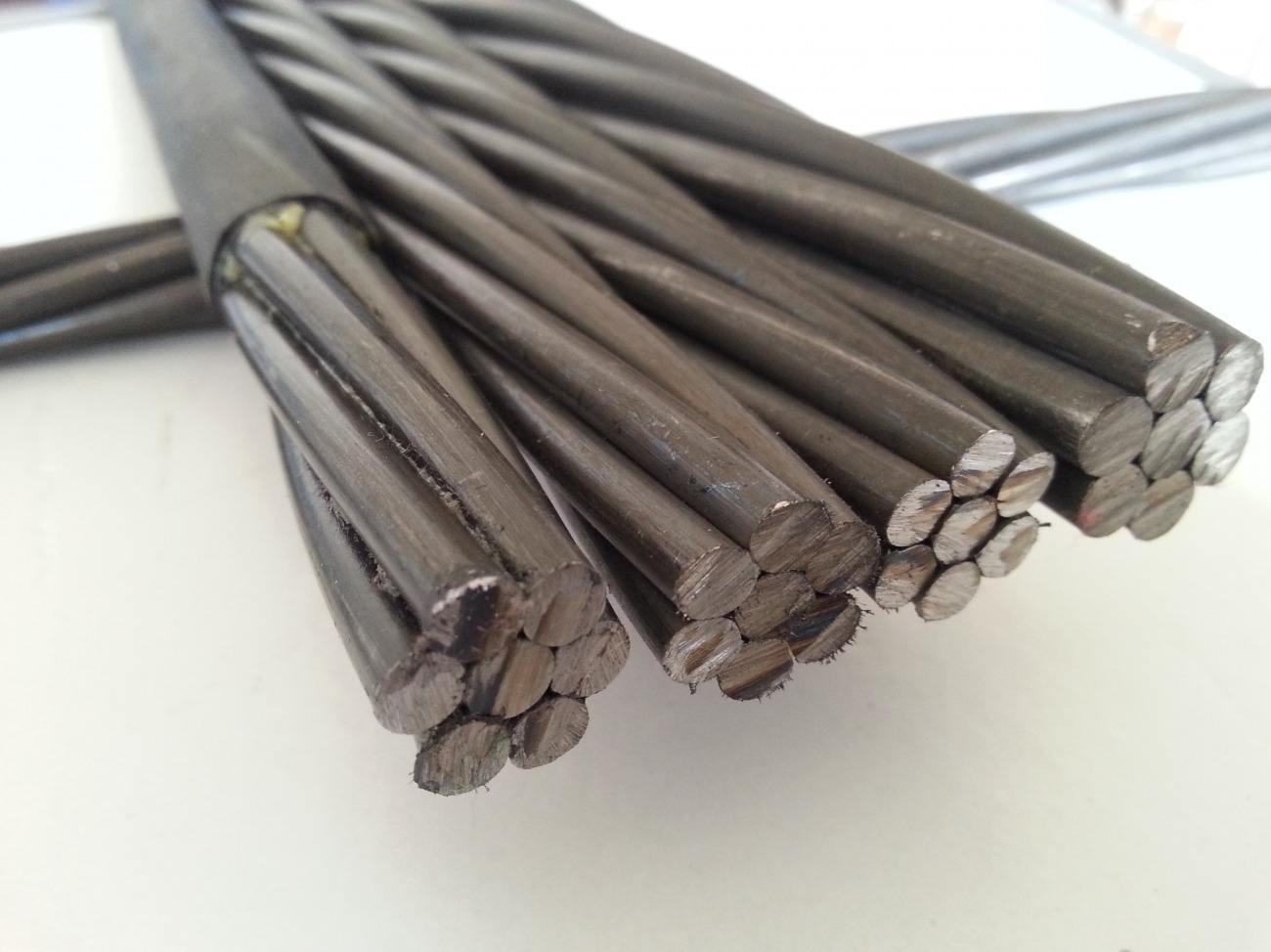

Prestressed steel strand is a multi-strand steel strand composed of 2, 3, 7 or 19 high-strength steel wires, and has undergone stress relief treatment (stabilization treatment), suitable for prestressed concrete or similar purposes. After surface treatment, the high-carbon steel wire rod is cold drawn into steel wire, and then a certain number of steel wires are twisted into a strand according to the structure of the steel strand, and then formed by a stable process of eliminating stress. The main characteristics of prestressed steel strands are high strength, good relaxation performance, and relatively straight when unfolded. Common tensile strength grades are 1720, 1770, 1860 MPa, this steel has a higher yield strength.
| Product name | Prestressed steel strand |
| Structure | 1*2/1*3/1*7/1*19 |
| Produce Process | Drawings→ mould making → pre-forging →rough machining or finish machining →surface treatment →product checking and quality control→ packing →delivery |
| Dia.(mm) | 8.0mm--21.6mm |
| Material | high carbon steel 82B and 77B |
| Standard | /T5224-2003, BS5896-1980, EN10138-2005,AS NZS 4672.1-2007, ASTM 416-2006, ISO_6934-4-2000, JIS 3536-1999, etc.. |
| Surface treatment | Heat treatment, Polishing, shot blasting, Painting, Electro-plating, Chemical Plating |

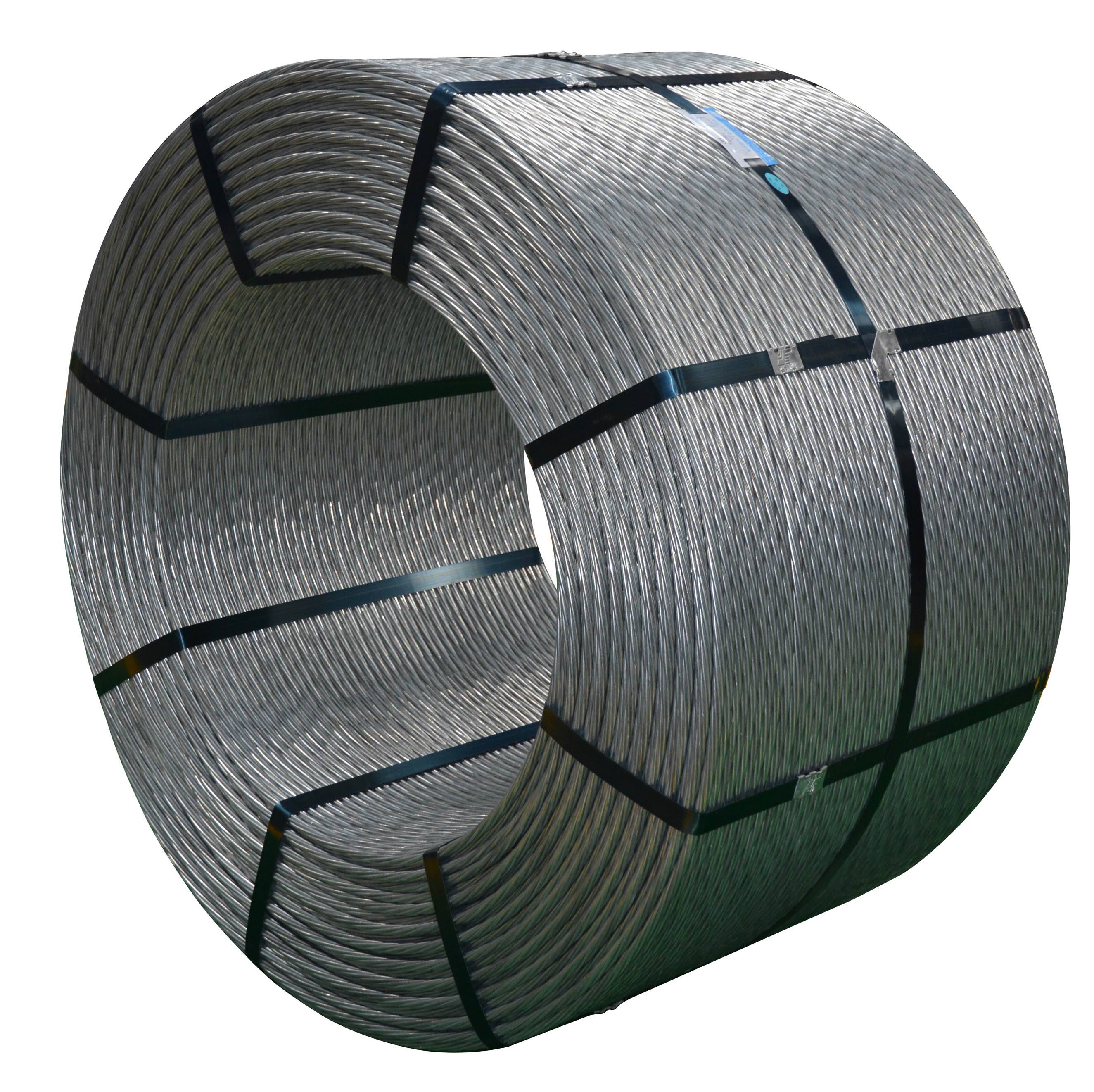

| Packing | Inner Diameter:760mm |
| Outside Diameter:1400mm Max | |
| Coil's width:760mm | |
| Coil's Weight:2500~3500 kg | |

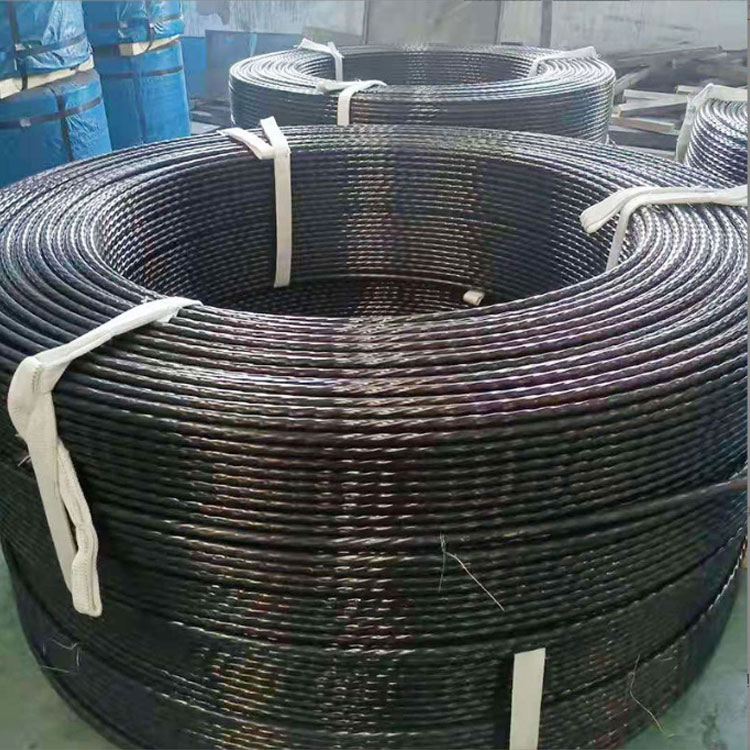

| We use vapors corrosion inhibiting technology on export anti-rust packing. Out side of the coil has 3 wraps.There are two wooden pallets on the bottom of the coil. The coil is eye to sky in the container. | |
| Application | 1.Used in the upper plates of bridges |
| 2.As cable for special bridges and for the maintenance of bridges | |
| 3.It is also used as floor and roof reinforcement for sports stadiums |
