Product Description

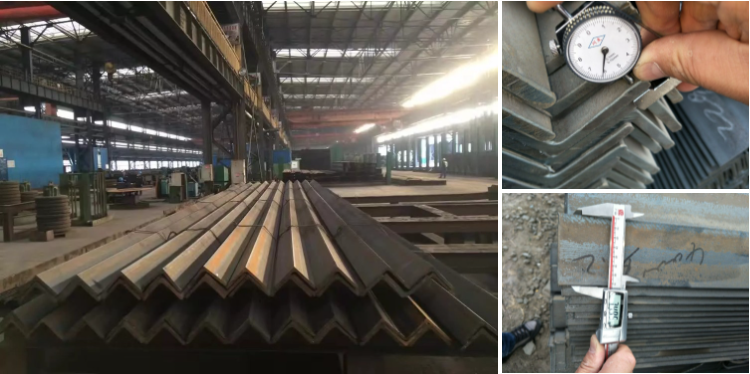

Mild Steel Angle is a product which has two legs to form a 90 degree angle.
This product is designed to be used in both structural applications and general fabrication. Its range of applications are wide and can include trailer manufacturing, safety cages, walkways, farming equipment, and anywhere where it is important to improve the structure’s rigidity.
Mild Steel Angle is available in equal leg (legs are the same length) or unequal leg (legs are different lengths).
Angle metal is measured first by the lengths of the legs and then the thickness of the legs.
Mild Steel Angle can be purchased online. It can be cut to your exact specifications.
Specification
| Product Name | Hot Sale 6# Equal Angle Bars/MS Angle/Galvanized angle steel from China |
| Standard | JIS G3101 / EN10025 / ASTM A36 / ASTM A572 / ASTM A992 |
| Shape | Equal Angle |
| Materials | Q235B,Q345B,Q460C,SS400,S275JR.S355JR,A572,A992 |
| Dimensions | 20*20-200*200mm |
| Length | 2m, 5.8m, 6m, or as required |
| Steel Grade | G300 G350 S275JR S355JR,SS400,ASTM36,S235jr,S235jo, Q235B and Q345B etc. |
| Standard | ASTM, ANSI, GB, DIN, JIS, EN, ISO. |
| Surface Treatment | Hot Dip Galvanized, Painting or Black. |
| Technique | Hot rolled/Cold Rolled/Galvanized |
| Custom services | Cutting-Punching-Drilling |
| Packing | By bundles with steel strips or as customer request |
| Delivery Time | 15 days after receive advance payment or L/C |
| Application | Mechanical&manufacture,Steel structure,Shipbuilding,Bridging,Automobile chassis. |
| Item | Model | Spec | Theoretical Weight kg/m |
| Equal Angle Bar | 2.5# | 25*3 | 1.124 |
| Equal Angle Bar | 25*4 | 1.459 | |
| Equal Angle Bar | 3# | 30*3 | 1.373 |
| Equal Angle Bar | 30*4 | 1.786 | |
| Equal Angle Bar | 4# | 40*3 | 1.852 |
| Equal Angle Bar | 40*4 | 2.422 | |
| Equal Angle Bar | 40*5 | 2.976 | |
| Equal Angle Bar | 5# | 50*4 | 3.059 |
| Equal Angle Bar | 50*5 | 3.77 | |
| Equal Angle Bar | 50*6 | 4.468 | |
| Equal Angle Bar | 6# | 60*5 | 4.57 |
| Equal Angle Bar | 60*6 | 5.42 | |
| Equal Angle Bar | 6.3# | 63*5 | 4.822 |
| Equal Angle Bar | 63*6 | 5.721 | |
| Equal Angle Bar | 63*8 | 7.469 | |
| Equal Angle Bar | 7# | 70*5 | 5.397 |
| Equal Angle Bar | 70*6 | 6.406 | |
| Equal Angle Bar | 70*7 | 7.398 | |
| Equal Angle Bar | 70*8 | 8.373 | |
| Equal Angle Bar | 7.5# | 75*5 | 5.818 |
| Equal Angle Bar | 75*6 | 6.905 | |
| Equal Angle Bar | 75*7 | 7.976 | |
| Equal Angle Bar | 75*8 | 9.03 | |
| Equal Angle Bar | 75*10 | 11.089 | |
| Equal Angle Bar | 8# | 80*6 | 7.376 |
| Equal Angle Bar | 80*8 | 9.658 | |
| Equal Angle Bar | 80*10 | 11.874 | |
| Equal Angle Bar | 9# | 90*8 | 10.946 |
| Equal Angle Bar | 90*10 | 3.476 | |
| Equal Angle Bar | 90*12 | 15.94 |
| Item | Chemical composition % | Mechanical property | ||||||
| Steel | C % | Mn % | S % | P % | Si % | Yield point Mpa | Tensile strength Mpa | Elongation % |
| Q195 | 0.06-0.12 | 0.25-0.50 | < 0.050 | < 0.050 | ≤0.30 | > 195 | 315-430 | ≥33 |
| Q235 | 0.09-0.15 | 0.25-0.55 | < 0.045 | < 0.045 | ≤0.30 | > 235 | 375-500 | ≥26 |
| Q345 | ≤0.20 | ≤0.17 | ≤0.04 | ≤0.04 | ≤0.50 | > 345 | 470-630 | ≥20 |
