Product Description

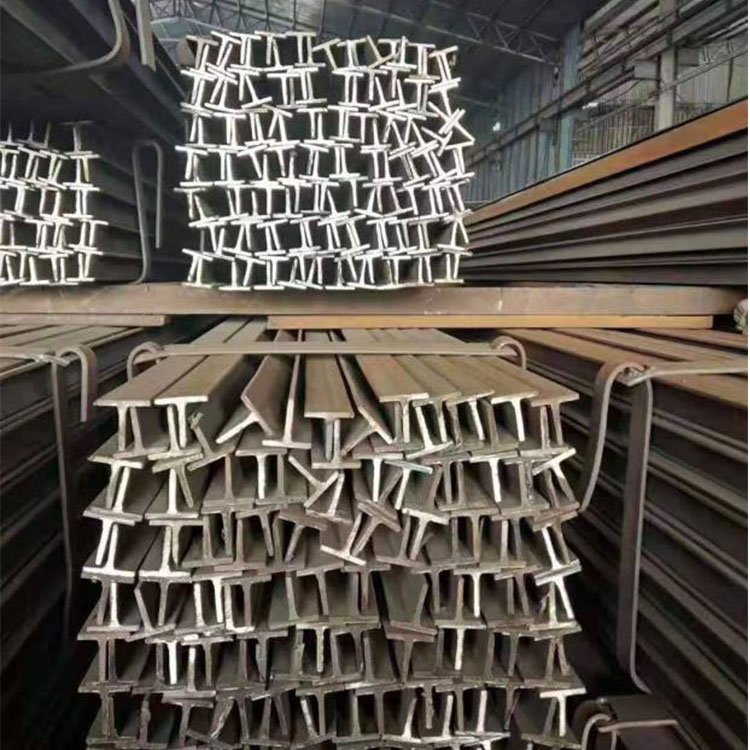

According to the production method, T-beam can be divided into two types:
1. It is made of H-beam directly divided into T-beam. The standard is the same as that of H-beam (GB/T11263-2017). It is an ideal material to replace double angle steel for welding. It has the advantages of strong bending resistance, simple construction, cost saving and light weight of the structure. Widely used in machinery manufacturing, railway construction, curtain wall decoration, vehicle manufacturing and other industries.
2. Hot-rolled T-beam is mainly used in machinery and small hardware section steel. The representation method of hot-rolled T-beam: height H*width B*web thickness t1*flange thickness t2. For example: T-section steel Q235B or SS400 220*220*10*14 is represented as a T-section steel with a height of 220mm and a width of 220mm with a web thickness of 10mm and a wing thickness of 14mm. Its grade is Q235B or SS400.
Ordinary hot rolled T-beam specification table | |||||
T-beam specification table (materials are Q235B\Q345B\SS400\SM490B) | |||||
Hot Rolled Split T-beam Specifications | 1M/Kg | 1 piece/ton | Hot Rolled Split T-beam Specifications | 1M/Kg | 1 piece/ton |
50x100x6x8 | 8.60 | 0.1032 | 194x402x15x15 | 70.50 | 0.8460 |
62.5x125x6.5x9 | 11.90 | 0.1428 | 195x300x10x16 | 53.50 | 0.6420 |
74x100x6x9 | 10.70 | 0.1284 | ★197x398x11x18 | 73.50 | 0.8820 |
75x150x7x10 | 15.95 | 0.1914 | ★197x405x18x18 | 84.50 | 1.0140 |
75x75x5x7 | 7.15 | 0.0858 | 198x199x7x11 | 28.35 | 0.3402 |
87.5x175x7.5x11 | 20.15 | 0.2418 | ★200x150x8x13 | 27.90 | 0.3348 |
87.5x90x5x8 | 9.10 | 0.1092 | 200x200x8x13 | 33.00 | 0.3960 |
97x150x6x9 | 15.60 | 0.1872 | 200x400x13x21 | 86.00 | 1.0320 |
99x99x4.5x7 | 9.25 | 0.1110 | ★200x408x21x21 | 98.50 | 1.1820 |
100x100x5.5x8 | 10.85 | 0.1302 | ★207x405x18x28 | 116.50 | 1.3980 |
100x200x8x12 | 25.25 | 0.3030 | ★214x407x20x35 | 142.00 | 1.7040 |
★100x204x12x12 | 28.35 | 0.3402 | 220x300x11x18 | 62.00 | 0.7440 |
122x175x7x11 | 22.05 | 0.2646 | 223x199x8x12 | 33.35 | 0.4002 |
124x124x5x8 | 12.90 | 0.1548 | 225x150x9x14 | 32.75 | 0.3930 |
125x125x6x9 | 14.85 | 0.1782 | 225x200x9x14 | 38.25 | 0.4590 |
125x250x9x14 | 36.20 | 0.4344 | 241x300x11x15 | 57.50 | 0.6900 |
★125x255x14x14 | 41.10 | 0.4932 | 244x300x11x18 | 64.50 | 0.7740 |
147x200x8x12 | 28.65 | 0.3438 | 248x199x9x14 | 39.75 | 0.4770 |
★147x302x12x12 | 42.50 | 0.5100 | 250x200x10x16 | 44.80 | 0.5376 |
149x149x5.5x8 | 16.30 | 0.1956 | ★253x201x11x19 | 51.50 | 0.6180 |
150x150x6.5x9 | 18.65 | 0.2238 | 291x300x12x17 | 68.50 | 0.8220 |
150x300x10x15 | 47.25 | 0.5670 | 294x300x12x20 | 75.50 | 0.9060 |
★150x305x15x15 | 53.00 | 0.6360 | ★297x302x14x23 | 87.50 | 1.0500 |
★169x351x13x13 | 53.00 | 0.6360 | 298x199x10x15 | 47.55 | 0.5706 |
170x250x9x14 | 39.85 | 0.4782 | 300x200x11x17 | 53.00 | 0.6360 |
★172x348x10x16 | 57.50 | 0.6900 | ★303x201x12x20 | 60.00 | 0.7200 |
★172x354x16x16 | 65.50 | 0.7860 | 346x300x13x20 | 83.00 | 0.9960 |
173x174x6x9 | 20.90 | 0.2508 | 350x300x13x24 | 92.50 | 1.1100 |
175x175x7x11 | 25.00 | 0.3000 | 396x300x14x22 | 95.50 | 1.1460 |
175x350x12x19 | 68.50 | 0.8220 | 400x300x14x26 | 105.00 | 1.2600 |
★175x357x19x19 | 78.00 | 0.9360 | 450x300x16x28 | 121.50 | 1.4580 |
Note: The specifications marked with "★" are very common specifications and need to be pre-ordered for production before delivery. | |||||
